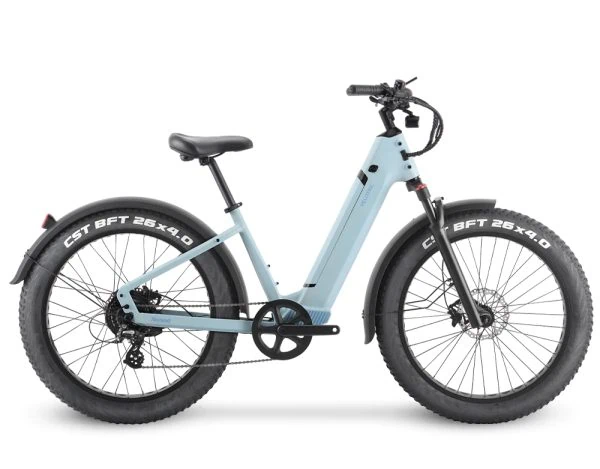

Velotric Nomad 1 E-Bike

Original price was: $1,799.00.Current price is: $1,299.00.

Free assembly and delivery in the Phoenix Arizona Area

Nomad 1

The powerful fat tire ebike that can conquer all road and weather conditions.

Rider Heights

5'1" - 6'4"

Easy To Get On.
Easy to Get Off.

accessible to all riders.

Reinforced aluminum step-thru so you can easily hop on & off, even with items stored on the rear rack. Nomad 1 fits riders from 5’1 to 6’9.

The most versatile adventure E-Bike

The Nomad 1 can easily conquer any road. The front fork gives you a smooth riding experience in parks, cities, suburbs, or anywhere else you ride.

Technical Specifications

FRAMESET

Frame	Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders, quick release seatpost clamp
Fork	Hydraulic suspension with 80mm travel, with Lock-out

ELECTRONICS

Motor Hub	48V, 750W (peak 1200W),max torque 75Nm
Battery	48V, 691Wh, UL 2271 Recognized
Cell	21700, made by Samsung
Charger	48V, 3.0A, operates on 100V-240V AC, 5-6 hr charging
Display	3.5” Backlit LCD display with speed, trip, battery, assist level and more
USB Port	5V 500mA, output for external devices
Throttle Assist	Thumb-control, removable
Headlight	High output integrated LED, adjustable angle

SPEED & RANGE

Pedal Assist Range	55miles
Throttle Range	52miles

DRIVETRAIN

Chainrings	46T
Crankset	Aluminum alloy, 170mm
Cassette	8-Speed, 13-34T
Chain	KMC-Z8
Rear Derailleur	Shimano RD-M310, 8-speed
Shift Lever	Shimano SL-M315, 8-Speed, thumb shifter

BRAKE
Brake	Hydraulic disc brakes
Rotors	180mm front and rear
Brake Levers	Aluminum alloy, with adjustable reach and power cutoff switch

WHEEL
Rims	Aluminum alloy, 36H
Tire	26×4.0”, puncture-resistant tire

COCKPIT
Handlebars	Aluminum alloy, 31.8mm, 700mm wide
Grips	Durable ergonomic Grips
Stem	Velotric customized, 10-Degree rise
Saddle	Comfort ergonomic seat, 220mm wide
Seat Post	Aluminum alloy, 350mm x 30.4mm, quick release clamp

SUPPORTS
Fenders	Front and rear full coverage
Pedals	9/16’’ Alloy platform with reflectors
Kickstand	Heavy-duty aluminum with wide foot

WEIGHT& LOAD
Bike Weight	High-step 73lbs Step-thru 72lbs
Front rack Load Capacity	33lbs
Rear rack Load Capacity	55lbs
Max Bike Load	440lbs

Geometry

Bike Specifications

Head Tube Angle

68°

Seat Tube Angle

70°

Reach / Stack

380/680mm

Rider Heights

5'1''-6'4''

Rear Center

510mm

Minimum Seat Height

817mm

Maximum Seat Height

1020mm

Handlebar Height

1080mm

Total Length

1915mm

Seat Tube Length

435mm

Standover Height

420mm

Wheelbase

1140mm

How To Unlock Top Speed

How To Unlock Your Velotric E-Bikes Top Speed?

DISCLAIMER: Customers who unlock their Velotric ebikes to Class 3 mode are responsible for checking that they use their ebikes in compliance with their local laws. Velotric or Smitty’s E-bikes cannot take responsibility for any legal liabilities associated with using the bike in Class 3 mode.

Step 1: Pull Up The Speed Menu

While your bike is powered OFF, hold [Power] and [+] together for 20 seconds. The display will then enter the speed menu, pictured below:

Step 2: Adjust the Top Speed

Click [+] to increase the speed limit up to 40km/h, (~25 mph). You can also click [-] to decrease the top speed.

Afterward, hold the [Power] button to shut off the display. The new top speed will be saved.

Step 3: Unplug the Thumb Throttle Cable

You MUST unplug the thumb throttle cable in order to comply with Class 3 ebike classifications. On both the Discover 1 and the Nomad 1, the thumb throttle cable’s connectors should be ORANGE.
